Buy Furuno FR 2125 X Band 25kW ARPA Radar set – Best offer of 2020!
Furuno FR2125 (2002 mfg.) X band 25kW ARPA (optional) marine radar used complete set which comprises of the display unit, scanner turning unit mounted with open array radiator is for sale. Installed with Main PCB, ARP PCB, and DSP PCB. This is a two-unit set i.e. TR-Up type model.
We always have several sets of Furuno FR2125 in stock which we can supply at a reasonable price. Furuno marine electronic equipment is most popular in the shipping industry and this is one of the very successful Furuno radar models. Suitable for a wide range of users like fishing vessels, cargo and passenger ships, mid-sized boats, mega yachts, etc. Very useful if your requirement is a high resolution, high refresh rate multi-color display for marine navigation.

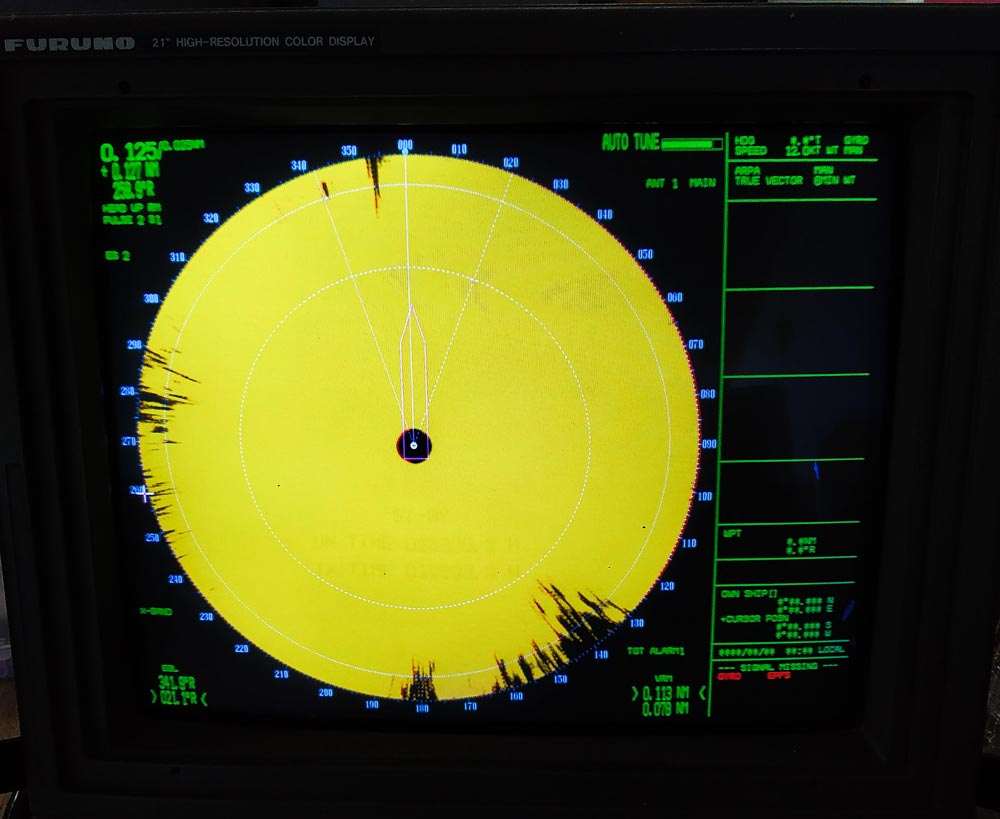

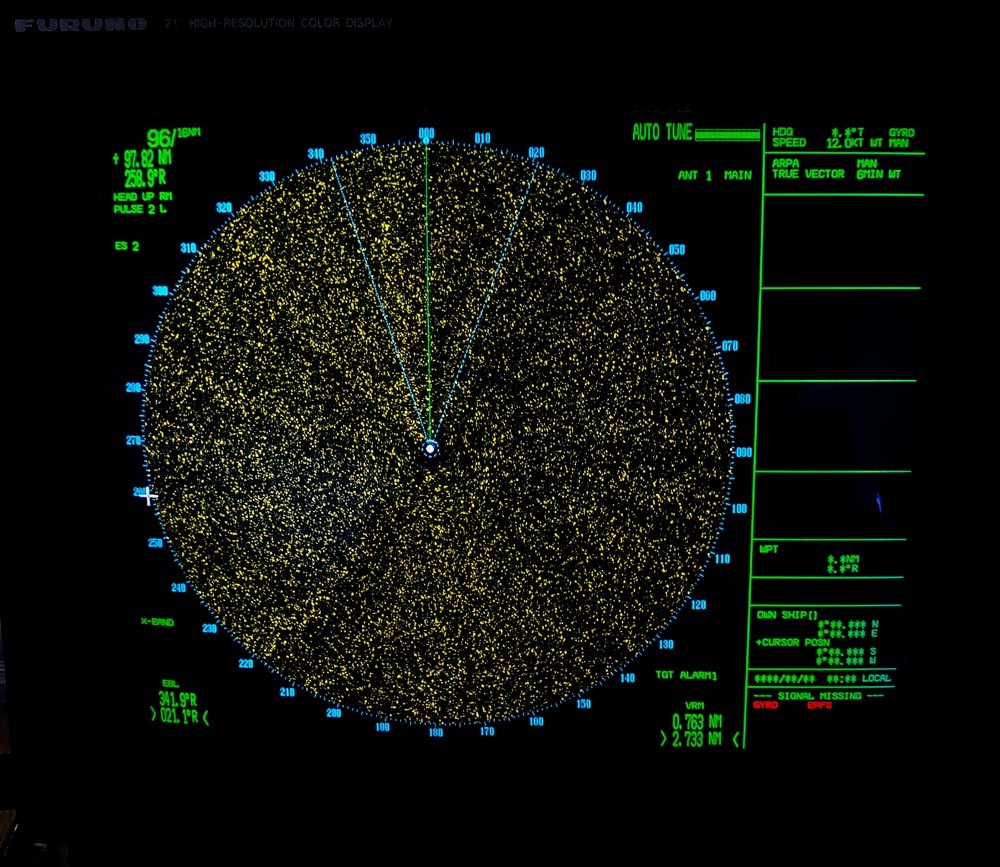

Our used marine electronic equipment are tested and in fully working condition. Sample images of Furuno FR2125 Radar system tested at different nautical mile ranges are shown here below.
Send us your inquiry for Furuno FR-2125 Radar
Furuno FR-2125 Marine Radar – Overview:
This Furuno FR-2125 ARPA radar is designed to meet various customers’ needs such as coasters, fishing vessels, mega yachts, commercial shipping vessels, passenger ships as well as high-speed craft, etc. This model of Furuno Radar meets the requirements of international standards regulations.
This model comes with an Electronic Plotting AID – EPA card installed. While ARP-26 card for ARPA functionality and video plotter card RP-26 PCB are optional cards. The ARPA facility reduces the workload of the ship personnel to great extent and improves the standards of collision avoidance.
21″ high-resolution color CRT display of Furuno FR-2125 delivers 275mm of effective diameter. Radar echoes are shown in a user-selected color with an option for day or night background color which makes the observation easy during changing light conditions of day and night. Different color selection options can be assigned for marks, symbols, and texts as per user preference. Control unit/keyboard is designed for easy operation and navigation of the menu with the use of push buttons in combination with rotary controls. Operational features satisfy IMO and IEC requirements.
Furuno FR-2125 is designed for reliability and easy serviceability. Technicians can reach out to all the surfaces easily because of the smart and sophisticated design of the display unit.
Furuno FR-2125 Marine Radar – Specifications:
• Daylight-bright raster-scan 21-inch Diagonal (275 mm effective), Color CRT high-resolution Display
• High Resolution, 1280 x 1024 dots (SXGA), Non-Interlaced Picture
• 25 kW Transmitter Output, Transceiver Aloft
• 14 Range Scales from 1/8th to 120 NM (non IMO), 96 NM (IMO)
• 8 Transmitter Modulator Pulse Lengths and 4 Pulse Repetition Rates
• Automatic Tuning, 6 dB, Low Noise Receiver
• 16 Level Mono Yellow or Green Targets or Red, Yellow & Green Targets
• Dark Blue, Light Blue or Black Background Color for Day or Night Use
• Head-up, Course-up, Head-up/TB, North-up or NU/TM, Sea or Ground Stabilized **
• 4 Pre-Set Function (Macro) Keys for Optimized System and Watch Timer Use
• Electronic Dual, In/Out Radar Guard Zone Alarms with Visual & Audible Alerts
• Dual Electronic EBL and VRM, with Offset Range/Bearing Measurements
• Electronic Plotting Aid (EPA), 10 Targets and 10 Symbols **
• Full-Screen Off-Centering or 2 x Zoom (Cursor Selected Target Area Doubling)
• Radar Mapping Capability, Enhanced Performance using Optional RP26
• True or Relative, Timed Target Trails **
• Graphic Barge and Tow Display, with Own Ship Vector
• Target Echo Averaging and Echo Stretch Functions
• Sweep Sector Blanking, Center Target Echo Stretch, North Mark, and Stern Flash **
• Remote Video Monitor Output
• Optional ARP26, 40 Target ARPA (IMO A.823)”
• New micro-processing technology with high-speed, high-density gate array and software expertise
• Strong and sturdy cast aluminum scanner gearbox and new design efficient antenna
** Heading and/or Speed Data Input Required
We can ship this set worldwide. Contact us now to know Furuno FR-2125 price and other information.
